Into the Heart

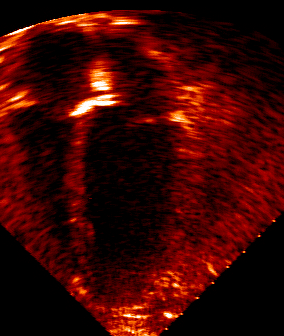

The image used, avoiding textual annotation and other data.

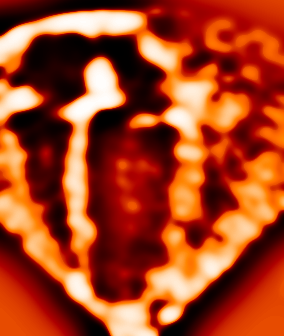

The filtered image. Wavelet scales 4 and 5 were retained, and here we see the sum of these two images.
Animation of input image and the filtered image.
The image used, avoiding textual annotation and other data.
The filtered image. Wavelet scales 4 and 5 were retained, and here we see the sum of these two images.
The image in FITS format (32-bit real) was wavelet transformed (à trous method), mr_transform -n 6 -x echoc.fits echocard , and the output images translated to GIF in IDL.
To probe further
Image and Data Analysis: The Multiscale Approach, J-L Starck, F Murtagh and A Bijaoui, Cambridge University Press, 1998.
